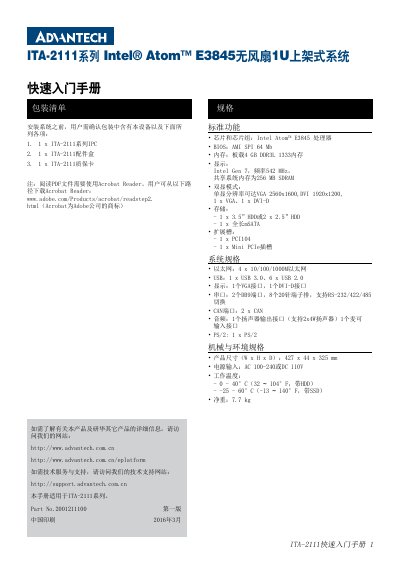

Advantech ITA-2111 Series IPC Quick Start Guide

This document is the Quick Start Guide for the Advantech ITA-2111 series fanless 1U rackmount system, covering installation checks, specifications, and…

Brand: Advantech
Category: Industrial Robot
Document type: User Manual
Language: Chinese
Pages: 7
File format: PDF
File size: 604 KB
Published: 16 October, 2026
Updated: 16 October, 2026
Model: ITA-2111
MD5 checksum: BAD26F48695E3DFAA53C67882030375B
PDF: Advantech ITA-2111 Series IPC Quick Start Guide PDF

About this manual

The ITA-2111 Series IPC is a fanless 1U rackmount system powered by an Intel Atom E3845 processor. This manual serves as a quick start guide for users to verify the package contents, understand system specifications, and configure jumpers and interfaces before installation. This manual is written in Chinese.

What's inside

Package Contents
System Specifications
Jumper Settings
Interface Definitions
LED Indicators
Safety Precautions

Specifications

Processor	Intel Atom E3845
Memory	4 GB DDR3L 1333
Display Output	VGA, DVI-D
Ethernet Ports	4 x 10/100/1000M
USB Ports	1 x USB 3.0, 6 x USB 2.0
Dimensions (W x H x D)	427 x 44 x 325 mm
Power Input	AC 100-240 or DC 110V

Frequently asked questions

What is included in the package?

The package includes one ITA-2111 series IPC, one accessory box, and one warranty card.

What is the maximum operating temperature for this system when using an SSD?

The system can operate at temperatures between -25°C and 60°C when equipped with an SSD.

What voltage is required for the GPIO pins in their default setting?

The default setting for the VCCGPIO1 jumper provides a +V5_SB voltage.

What is the maximum resolution supported by the VGA interface?

The single display mode supports a VGA resolution of up to 2560x1600.
