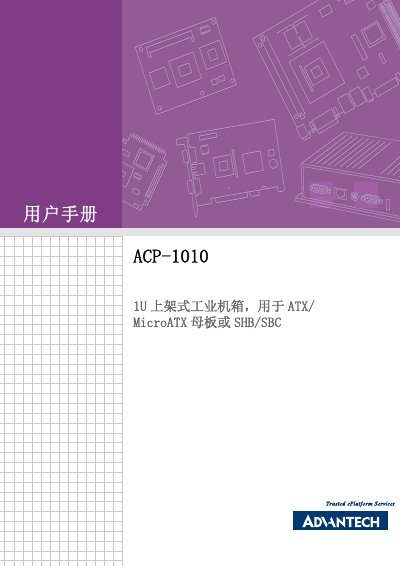

This manual covers the installation, operation, and maintenance of the Advantech ACP-1010 1U rackmount industrial chassis.
The Advantech ACP-1010 is a compact, rugged 1U rackmount industrial chassis designed for space-constrained applications. It supports various 3-slot passive backplanes and can accommodate two full-length PCI cards via a passive backplane. The chassis features a unique alarm module that automatically detects system status, such as HDD, fan, and system temperature, and displays it via front panel LED indicators. It supports 250W or 300W ATX 1U power supplies and is designed for good cooling performance.
This user manual provides instructions for initial inspection, system installation (including removing the cover, installing passive backplanes, CPU cards, motherboards, and disk drives), operation, and maintenance tasks such as replacing cooling fans, filters, and power supplies. It also details the specifications and layout of the alarm board. This manual is written in Chinese.
| Form Factor | 1U Rackmount |
|---|---|
| Supported Motherboards | ATX/MicroATX or SHB/SBC |
| Warranty | Two years |
Advantech provides a two-year product quality warranty for the original purchaser from the date of purchase.
The ACP-1010 chassis is designed for use with ATX or MicroATX motherboards or SHB/SBCs.
The device should not be used in environments exceeding 40°C (104°F).
Only the manufacturer-recommended same or equivalent model battery should be used for replacement.
