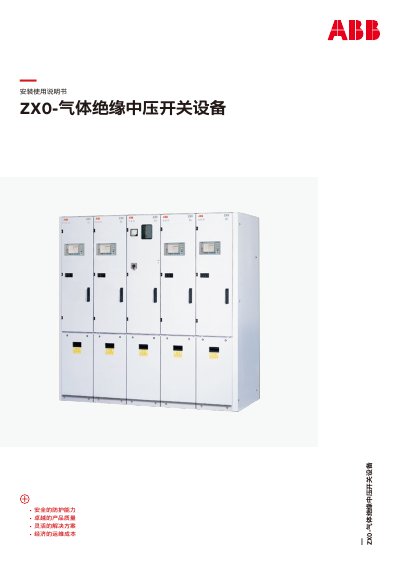

This ABB ZX0 gas‑insulated medium‑voltage switchgear installation guide provides safety instructions, transport, storage, site installation, commissioning…
The guide explains how to safely install and operate the ZX0 series gas‑insulated medium‑voltage switchgear. It emphasizes that only qualified personnel should perform installation, operation, and maintenance, and that all work must comply with relevant standards and regulations.\n\nThe document is organized into sections covering transport and storage, on‑site installation, trial run, operation, test procedures, service, end‑of‑life measures, tool list, materials and accessories, and technical parameters. It also includes safety warnings, torque specifications, handling of SF6 gas, and detailed component lists. This manual is written in Chinese.
| Rated Voltage | 24 kV |
|---|---|
| Rated Current | 1250 A |
| Short‑time Withstand Current | 25 kA |
| Gas Leakage Rate | < 0.1 % per year |
| Maximum Switchgear Units per Gas Tank | 4 |
Installation, operation, and maintenance must be performed by qualified personnel, in indoor locations, following all applicable standards and regulations, and never exceeding the equipment’s rated parameters.
For air transport the gas pressure is reduced, and before on‑site assembly the gas chamber must be re‑pressurised to the specified filling pressure.
Standard strength 8.8 grade bolts should be tightened according to the torque values listed in Table 2.1.2.1.
The technical parameters are listed on the nameplate inside the low‑voltage compartment and summarized in the “Technical Parameters” section of the guide.
