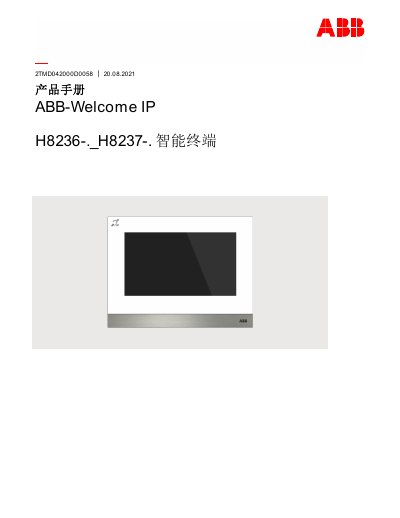

The ABB IP H8236-H8237 Smart Terminal manual provides usage instructions, safety information, installation, configuration, and operation details.
This manual covers all aspects of the ABB IP H8236‑H8237 smart terminal, including safety warnings, proper installation methods, and detailed configuration steps for Wi‑Fi, KNX, free@home, and other integrated systems. It also explains how to operate the device, manage users, set up alarms, and use the built‑in media player.
Network security guidelines, firmware upgrade procedures, backup and restore functions, as well as technical specifications such as power requirements, display characteristics, and communication interfaces are documented to help installers and end‑users maintain reliable and secure operation. This manual is written in Chinese.
| Rated voltage | 24 V |
|---|---|
| Working voltage range | 20‑27 V |
| Display size | 7" |
| Resolution | 1024 × 600 px |
| Operating temperature | -10 °C to +55 °C |
| PoE standard | IEEE 802.3af |
| Alarm power output | 12 V / 200 mA |
| Relay output | 30 V / 1 A |
| Supported Wi‑Fi bands | 2.4 GHz (2412‑2472 MHz) and 5 GHz (5150‑5850 MHz) |
| Maximum wireless transmit power | 20 dBm @ 12 Mbps OFDM |
The device supports Micro SDHC cards with capacities from 4 GB to 32 GB, Class 10 speed, and FAT32 file system.
Power must be disconnected before installation or removal, and only qualified personnel should perform the work; the device operates on 100‑240 V mains.
