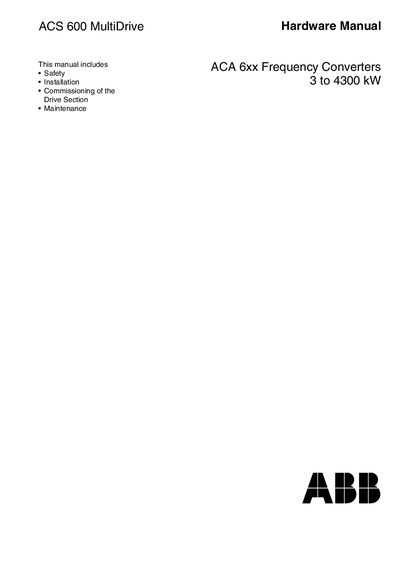

This document describes the installation, commissioning, and maintenance of ACA 6xx frequency converters, including safety instructions, technical data, hardware description, LED indicator descriptions, etc.
This manual covers the complete safety instructions, hardware description, and installation guidelines for the ACS 600 MultiDrive frequency converters. It includes detailed sections on cable selection, mechanical and electrical installation, hardware commissioning, and preventive maintenance.
Additional chapters describe LED indicators, module catalogues, supply‑section specifics (Diode, Thyristor, IGBT), firmware manuals, application programs, and optional equipment such as braking sections and fieldbus adapters.
| Power rating | 3 to 4300 kW |
|---|---|
| Supply section types | Diode (DSU), Thyristor (TSU), IGBT (ISU) |
