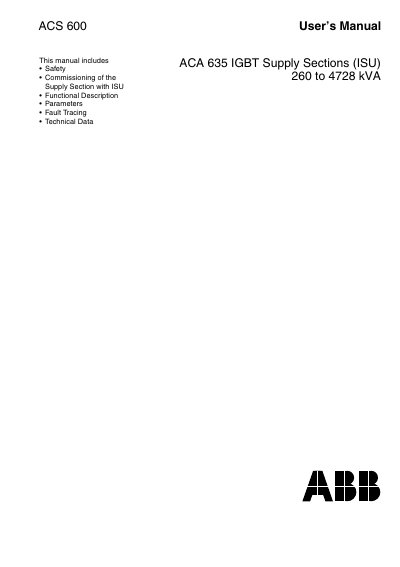

This manual includes Safety, Commissioning of the Supply Section with ISU, Functional Description, Parameters, Fault Tracing and Technical Data
This manual covers the ACS 600 MultiDrive IGBT supply sections (ACA 635) ranging from 260 kVA to 4728 kVA. It includes safety instructions, hardware description, commissioning procedures, fault tracing, and detailed technical data for each supply unit.
The document is organized into chapters on introduction, operation basics, hardware description, commissioning, earth‑fault protection, firmware, fault tracing, parameters, and appendices with technical ratings and circuit diagrams.
| Voltage range | 380 … 690 V |
|---|---|
| Maximum input current (I1N) | 260 A (ACA 635‑0265‑3) |
The ACS 600 must be supplied with a transformer dedicated to drives and motors, or a transformer with two secondary windings where one is dedicated to drives and motors.
Yes, the manual describes configurations for parallel‑connected modules, allowing several IGBT supply sections to operate together.
