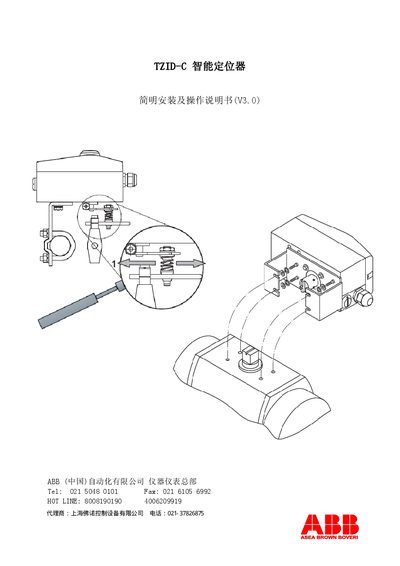

This manual introduces the simple installation and operation methods of TZID-C intelligent positioner, including pneumatic connection, electrical connection, debugging steps and other content.
The TZID‑C is an intelligent locator used with pneumatic actuators for precise position control in industrial automation. It receives 4‑20 mA control signals and provides position feedback and safety signals.
The manual covers gas and electrical connections, step‑by‑step debugging, automatic adjustment procedures, operation modes, parameter configuration, example settings, an appendix of function tables, and detailed error descriptions. This manual is written in Chinese.
| Maximum gas particle size | <5 µm |
|---|---|
| Maximum gas oil content | <1 mg/m³ |
| Maximum gas moisture content | 5 mg/m³ |
| Dew point requirement | ≥10 K below operating temperature |
| Maximum supply pressure | 6 BAR |
| Control signal input range | 4‑20 mA DC |
| Load resistance max | 410 Ω |
| Position feedback output range | 4‑20 mA DC, 24 V DCS supply |
| Linear travel range | -28° to +28° |
| Rotary travel range | -57° to +57° |
| Minimum full‑travel angle | ≥25° |
The gas must be oil‑free, water‑free, and meet DIN/ISO 8573‑1 standards with particle size under 5 µm, oil content below 1 mg/m³, moisture content 5 mg/m³, and a dew point at least 10 K below the operating temperature.
Use terminals +11 and -12 for the 4‑20 mA DC control signal, with a maximum load resistance of 410 Ω.
