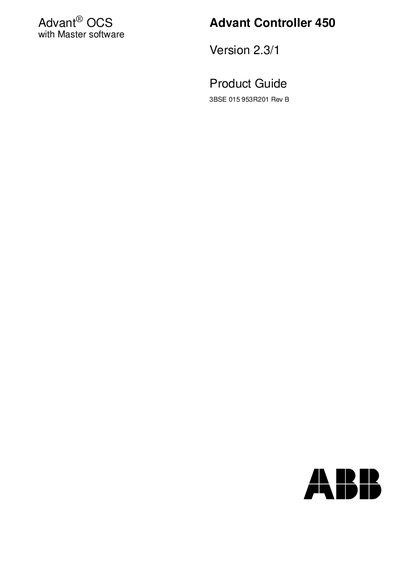

Advant® OCS with Master software Advant Controller 450 Version 2.3/1 Product Guide is a product guide published by ABB company for Advant® OCS with Master software Advant Controller 450 Version 2.3/1 product.
The Advant Controller 450 Product Guide describes the controller’s overall architecture, benefits and functional capabilities. It covers general controller utilities, process control features, communication options, and software components such as basic and optional program modules.
Technical data sections detail I/O limits, hardware component options, power supply arrangements, environmental considerations and ordering information. The guide also includes extensive tables of specifications, functional unit limits and hardware configuration examples.
| AI channels (analog inputs) | 910 |
|---|---|
| AO channels (analog outputs) | 963 |
| DI channels (digital inputs) | 2340 |
| Maximum analog input boards | 32 |
| Maximum digital input boards | 48 |
| Maximum digital output boards | 48 |
The controller supports up to 910 analog input channels.
The product meets the requirements of EMC Directive 89/336/EEC and Low Voltage Directive 72/23/EEC.
