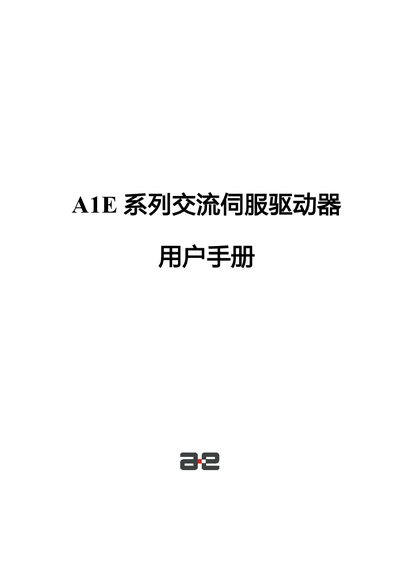

User manual for the A1E series AC servo drive covering safety, installation, wiring, operation, parameters and fault handling.
The A1E series AC servo drive user manual provides comprehensive guidance for safe handling, installation, wiring, and operation of the drive. It includes safety reminders, product information, installation environment requirements, wiring diagrams, panel display functions, parameter settings, and EtherCAT bus configuration.
The document also details the drive’s performance specifications, control modes, regeneration resistor selection, and extensive fault diagnosis and alarm handling procedures. Users can reference the troubleshooting tables to resolve common issues and maintain reliable operation. This manual is written in Chinese.
| Rated motor capacity (kW) | 0.1 – 5.0 kW |
|---|---|
| Rated current (A) | 0.91 – 32.9 A |
| Maximum current (A) | 2.9 – 84 A |
| Input power | AC single‑phase / three‑phase 220 V 50 Hz/60 Hz |
| Control method | SVPWM |
The drive provides an RS232 serial interface and supports EtherCAT bus communication for real‑time control.
