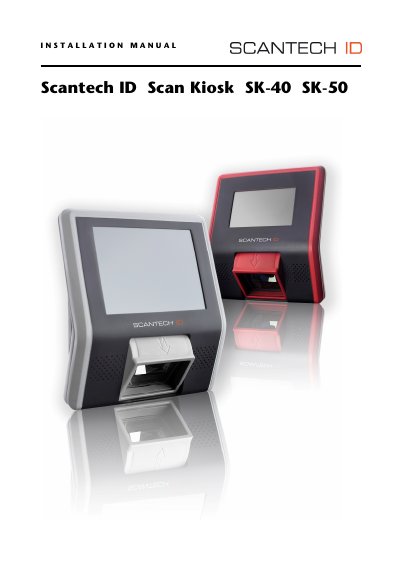

Installation guide for Scantech-ID ScanKiosk SK-40 and SK-50, covering mounting, connections, power, and safety information.
This manual provides step‑by‑step instructions for installing and operating the Scantech‑ID ScanKiosk SK‑40 and SK‑50. It includes safety warnings, product overview, unpacking, and detailed procedures for mounting, connecting peripherals, and expanding memory.
The device can be mounted using a VESA 75 mm bracket or wall‑mount screws, and supports power‑over‑Ethernet, USB, SD‑card, and optional RS‑232 connections. Technical specifications such as processor, memory, display, and power requirements are listed in Appendix A.
| Processor | Super RISC Processor 400 MHz |
|---|---|
| Flash Memory | 256 MB (expandable) |
| RAM | 128 MB |
| Display Size | 5.7 in diagonal (SK‑40) |
| Brightness | 400 nits |
| Resolution | 640 × 480 pixels |
| Power Supply Voltage | +12 VDC ± 10 % / 1.5 A |
| Power Consumption | < 1000 mA @ 12 VDC |
| Dimensions (H × W × D) | 193 × 176 × 85 mm |
| Weight | 0.9 kg |
| Operating Temperature | 0 °C ~ 40 °C |
The SK‑40 and SK‑50 comply with laser safety standards IEC 825 Class 1 and CDRH 21 CFR 1040, as well as electrical safety UL 60950‑1 and EMC directives.
The unit requires a +12 VDC supply (±10 %) at up to 1.5 A, with a nominal consumption of less than 1000 mA.
The device measures 193 × 176 × 85 mm (H × W × D) and weighs about 0.9 kg.
