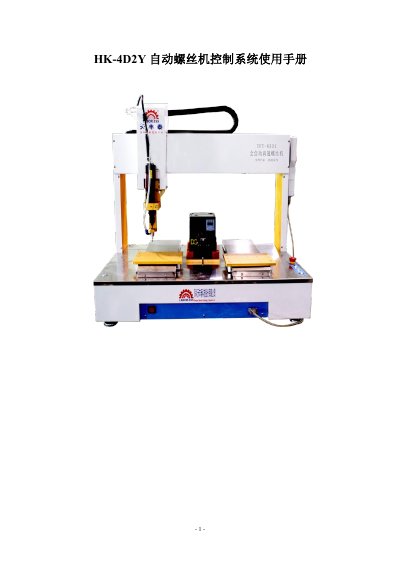

User manual for the HK-4D2Y automatic screw machine control system, covering hardware, software, menus and parameter settings.
This manual provides a complete overview of the HK-4D2Y automatic screw machine control system, including hardware configuration, software functions, accessories, interface diagrams and menu operations. It details the system’s 4‑axis motor control, ARM+DSP+FPGA architecture, and storage capabilities.
The document walks the user through the main interface, button functions, shortcut menus, various configuration menus, default parameter settings, and appendices such as time‑limit configuration and licensing procedures. This manual is written in Chinese.
| Storage capacity | 256 MB |
|---|---|
| Maximum files | 1000 |
| Programming points per file | 4000 |
| Working voltage | DC 24 V, 2 A |
| Operating temperature range | 0 °C – 45 °C |
| Storage temperature range | -40 °C – 60 °C |
| Programmable I/O channels | 6 independent channels, 500 mA per channel |
The system can store up to 1,000 processing files.
The controller operates at DC 24 V with a current of 2 A.
