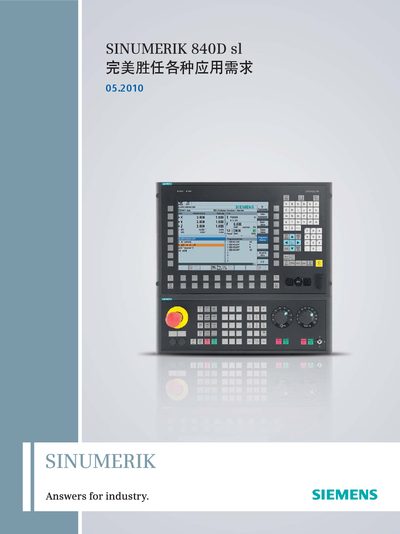

Siemens SINUMERIK 840D sl User Manual

The Siemens SINUMERIK 840D sl user manual details system architecture, features, safety, programming, and hardware integration for CNC applications.

Brand: Siemens
Category: Industrial Robot
Document type: User Manual
Language: Chinese
Pages: 8
File format: PDF
File size: 839 KB
Published: 04 October, 2026
Updated: 04 October, 2026
Model: 840D sl
MD5 checksum: 6AF9B506F42911C9B53AE0747FF8D6DD
PDF: Siemens SINUMERIK 840D sl User Manual PDF

About this manual

The SINUMERIK 840D sl is a modular, open and flexible CNC system that integrates the SINAMICS S120 drive and SIMATIC S7‑300 PLC. It combines CNC, HMI, PLC and drive functions in a single NCU/PCU unit, supporting distributed panels up to 100 m away.

The manual covers safety functions, programming languages, motion control, tool management, communication interfaces and supported motor types, providing operators and technicians with the information needed to install, program, operate and maintain the system. This manual is written in Chinese.

What's inside

System Overview
Advantages
Application Areas
Design and Integration
User Interface
Safety Features
Programming
Motion Control
Tool Management
Communication

Specifications

Maximum distributed panels per NCU/PCU	4
Maximum distance between NCU and panels	100 m
Number of way groups	10
Number of feed/spindle axes	31

Frequently asked questions

What safety functions are included in the SINUMERIK 840D sl?

The system provides safety brake, safety stop and other safety functions such as safe area limits and protected zones.

Which motor types can be used with the SINUMERIK 840D sl?

Both synchronous and asynchronous motors are supported, including various Siemens motor families.

What programming constructs does the system support?

The controller supports IF‑ELSE‑ENDIF, WHILE, FOR, REPEAT‑LOOP and macro techniques in addition to DIN 66025 language.
