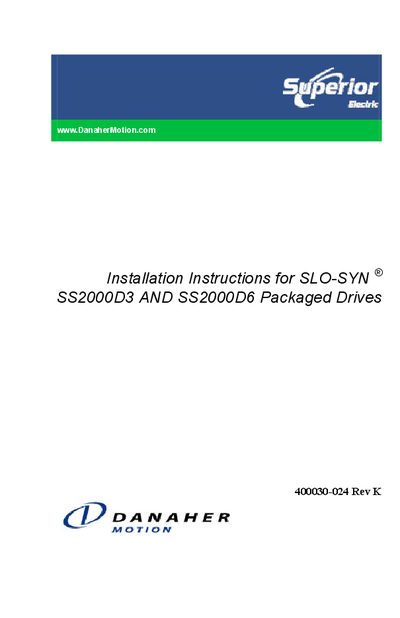

Installation instructions, wiring guidelines, specifications, and troubleshooting for Danaher Motion SLO‑SYN SS2000D3 and SS2000D6 packaged drives.
The SLO‑SYN SS2000D3 and SS2000D6 are bipolar, speed‑adjustable, two‑phase chopper drives that use MOSFET and IGBT power devices. They support a wide range of microstepping options and are designed for 115 VAC input.
This guide covers safety precautions, express start‑up steps, detailed wiring and mounting instructions, full mechanical and electrical specifications, motor compatibility, current and step‑resolution settings, torque‑versus‑speed characteristics, system‑checking procedures, and troubleshooting of electrical interference problems.
| Mechanical size (D3) | 2.5" W x 5.8" D x 10.8" H |
|---|---|
| Weight (D3) | 3.2 lb (1.45 kg) |
| AC input range | 90 V to 132 V, 50/60 Hz |
| Maximum current (D3) | 5 A |
| Fuse rating | 250 V, 8 A (Littelfuse 314008) |
| Operating temperature range | +32 °F to +122 °F (0 °C to +50 °C) |
Disconnect AC power, ensure the "PWR ON" LED is off, allow at least five minutes for capacitors to discharge, ground the unit, and keep the enclosure in place to avoid exposure to live voltage.
Use the front‑panel rotary switches to select the desired current; only one switch may be on at a time, and the highest‑current switch that is on determines the active setting.
