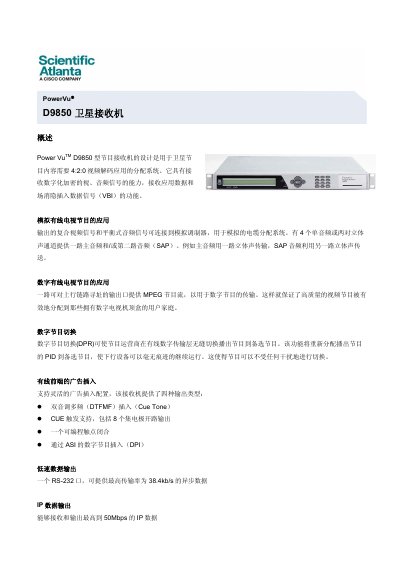

The Power Vu D9850 is a satellite program receiver designed for 4:2:0 video decoding applications. It can receive encrypted audio/video signals, application data, and VBI data, providing both analog and digital cable TV outputs with flexible audio channel configurations.
The unit offers multiple interfaces including RS‑232, Ethernet (up to 50 Mbps), ASI, SDI, and AES‑3id audio, and supports optional features such as BISS conditional access and digital program replacement. Environmental specifications cover operation from 0 °C to 50 °C, with a power supply range of 100‑240 V and a 1 RU, 4.5 kg chassis. This manual is written in Chinese.
| L‑band inputs | 4 |
|---|---|
| Frequency range | 950 MHz – 2150 MHz |
| Video decoding | 4:2:0 NTSC/PAL |
| Audio decoding | MPEG and Dolby AC‑3 |
| Composite video output level | 1 Vpp ± 5 % |
| Maximum Ethernet data rate | 50 Mbps |
| Power supply voltage | 100 V – 240 V |
| Operating temperature | 0 °C – 50 °C |
| Physical dimensions (H × W × D) | 4.4 cm × 48.3 cm × 38.1 cm (1 RU) |
The D9850 provides four L‑band inputs.
It operates from 950 MHz to 2150 MHz.
The Ethernet port can output up to 50 Mbps of data.
The unit accepts an input voltage between 100 V and 240 V, 50/60 Hz.
