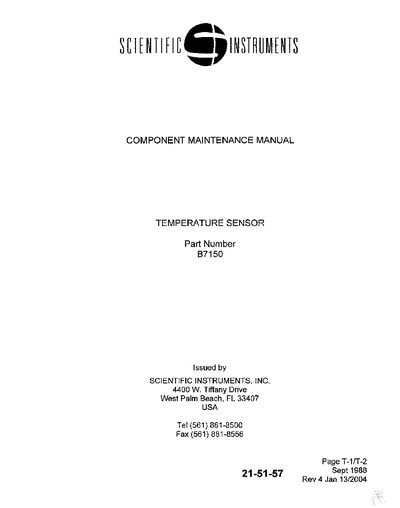

SCIENTIFIC INSTRUMENTS 21-51-57 B7150_Component service manual

Brand: Scientific
Category: Other Electronics
Document type: Service Manual
Language: English
Pages: 13
File format: PDF
File size: 209 KB
Published: 04 July, 2012
Updated: 04 July, 2012
MD5 checksum: 95AFF8D5C2B8693F49435F606DAF82E5
PDF: SCIENTIFIC INSTRUMENTS 21-51-57 B7150_Component service manual PDF

About this manual

This document is a Component Maintenance Manual for the Scientific Instruments B7150 Zone-In Temperature Sensor. It provides instructions for maintenance tasks such as cleaning, visual inspection, and proper storage conditions to ensure the sensor's longevity and performance.

What's inside

Description and Operation
Specifications
Testing and Fault Isolation
Disassembly
Cleaning
Check
Repair
Assembly including Storage
Fits and Clearances
Illustrated Parts List

Specifications

Resistance vs Temperature	See Figure 3
Storage Temperature	64°F and 82°F (18°C and 28°C)
Storage Humidity	25% and 65%

Frequently asked questions

Is the B7150 temperature sensor repairable?

No, the temperature sensor is considered non-repairable.

What should be done if the sensor has defects or incorrect operation?

The temperature sensor should be discarded.

What tools are required for maintenance?

No other special tools are necessary for this maintenance.
