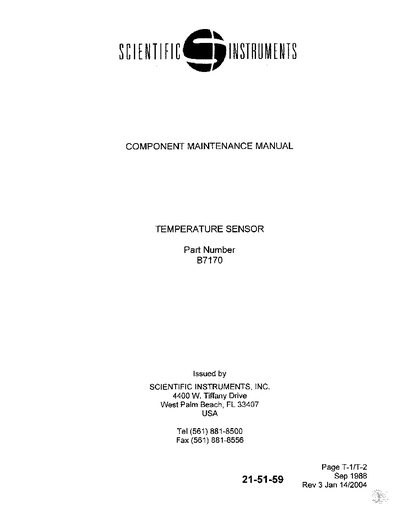

This document serves as a component maintenance manual for the Scientific Instruments B7170 Temperature Control Sensor. It provides instructions on identifying the unit via engraved data such as part number and serial number, along with a record of revisions and service bulletins.
The guide details procedures for testing and fault isolation using an ohmmeter, cleaning methods involving lint-free cloths and isopropyl alcohol, and visual inspection checks. It explicitly states that the sensor is non-repairable except for straightening bent receptacle pins, and outlines specific storage conditions regarding temperature and humidity.
The temperature sensor is considered non-repairable, though bent receptacle pins may be carefully straightened.
It must be stored in a clean, dry room between 64°F and 82°F (18°C and 28°C) with relative humidity between 25% and 65%.
No special tools, fixtures, or equipment are necessary beyond standard cleaning supplies.
