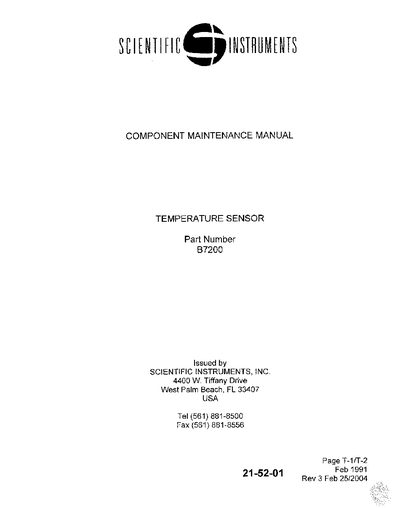

This document serves as a Component Maintenance Manual for the Scientific Instruments B7200 Duct Air Temperature Sensor. It outlines the general configuration, identification data, and specific maintenance procedures required for the unit. The manual is divided into sections covering description, specifications, testing, fault isolation, repair, assembly, storage, fits and clearances, and special tools.
The temperature sensor is considered non-repairable, except for carefully straightening bent receptacle pins.
The sensor must be stored in a room where the temperature is between 64°F and 82°F (18°C and 28°C).
The sensor must be stored in an environment with a relative humidity between 25% and 65%.
