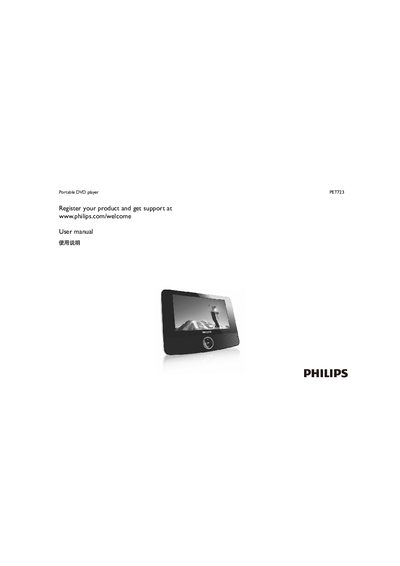

This document is a user manual for the Philips PET723 portable DVD player. The manual provides an overview of the product's features, including main device controls and remote control functions. It also provides warning information and an introduction to the product.
This manual explains how to register the PET723, connect the supplied AC or car transformer, and operate the player with its remote control. It covers basic functions such as playing DVD, VCD, CD‑R/RW, MP3‑CD, JPEG discs, and using the built‑in battery.
Safety guidelines, battery‑charging procedures, and detailed troubleshooting steps are included, along with technical specifications and environmental information for the device.
| Dimensions | 210 x 158 x 39.5 mm |
|---|---|
| Weight | 0.82 g |
| Power input | 100‑240 V 50/60 Hz 0.3 A |
| Power output | DC 9 V 1 A |
| Power consumption | 9 W |
| Operating temperature range | 0 °C – 45 °C |
| Video system | NTSC/PAL |
| Frequency response | 20 Hz ~ 20 kHz ± 1 dB |
| Signal‑to‑noise ratio | ≥ 80 dB |
| Audio distortion | ≤ ‑80 dB (1 kHz) |
| Channel separation | ≥ 80 dB |
| Dynamic range | ≥ 80 dB |
| Audio output voltage | 2 V ± 10 % |
| Audio load impedance | 10 kΩ |
| Video output voltage | 1 V p‑p ± 20 % |
| Video load impedance | 75 Ω |
