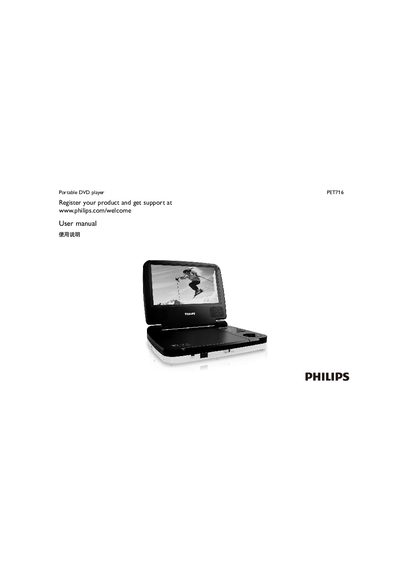

This document introduces the features and characteristics of the Philips PET716 portable DVD player, including support for universal DVD video standards, high-quality audiovisual experience, and various functional options.
This manual explains how to set up the Philips PET716 portable DVD player, including connecting the AC or car transformer, inserting discs, and using the remote control. It also covers safety warnings, battery charging procedures, and basic playback functions for DVD, VCD, audio CD, MP3 and DivX discs.
The guide includes detailed menu navigation, OSD language selection, video and audio settings, and a troubleshooting section that helps resolve power, sound, and picture issues. Technical specifications such as dimensions, power requirements, and audio/video performance are listed at the end of the document.
| Dimensions | 210 x 178 x 39 mm |
|---|---|
| Weight | 0.79 kg |
| Power Input | 100‑240 V 50/60 Hz 0.3 A |
| Power Output | DC 9 V 1 A |
| Power Consumption | 9 W |
| Operating Temperature | 0 °C – 45 °C |
| Video System | PAL |
| Frequency Response | 20 Hz – 20 kHz ± 1 dB |
| Signal‑to‑Noise Ratio | ≥ 80 dB |
| Audio Distortion | ≤ ‑80 dB (1 kHz) |
| Channel Separation | ≥ 80 dB |
| Dynamic Range | ≥ 80 dB |
| Analog Audio Output Voltage | 2 V ± 10 % (10 kΩ load) |
| Video Output Voltage | 1 V p‑p ± 20 % (75 Ω load) |
Check the audio connections and, if using a Hi‑Fi amplifier, try a different audio cable.
Press SETUP, select General Setup, then choose OSD Language and pick English or Chinese.
No. The manual warns not to place the player near household heating equipment or expose it to direct sunlight.
