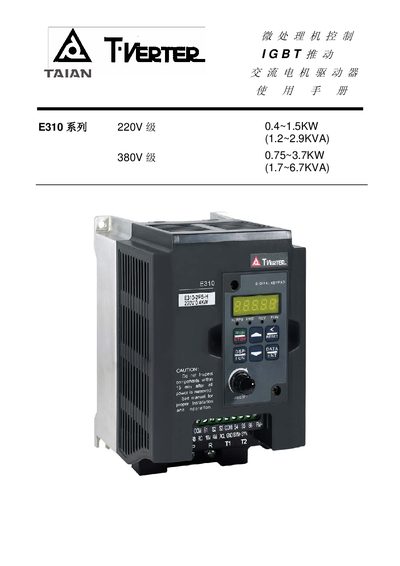

This manual provides detailed information on the features and use of the E310 frequency converter, including safety precautions, operating environment and installation, software index, troubleshooting and maintenance.
This manual explains how to safely operate the Taian E310 variable frequency drive. It covers safety warnings, required grounding, and precautions before energizing the unit to protect personnel and equipment.
It also details installation requirements, wiring rules, parameter settings, peripheral components, and a full troubleshooting guide to help users commission and maintain the drive in industrial environments. This manual is written in Chinese.
| Power rating (kW) | 0.4‑3.7 |
|---|---|
| Input voltage | 200‑240 V (single/three‑phase) / 380‑480 V (three‑phase) |
| Rated current (A) | 3.1‑7.5 A (220 V) / 2.3‑8.8 A (380 V) |
| Net weight (kg) | 1.33‑1.47 |
| Allowed instantaneous stop time (s) | 1.0‑2.0 |
The power voltage must match the drive’s name‑plate rating, the grounding impedance must be less than 100 Ω (220 V) or 10 Ω (380 V), and no wiring should be touched until the indicator lights are off.
L1, L2, L3 are the input terminals for the supply and must never be mixed with the output terminals T1, T2, T3.
Install the drive in an environment of –10 °C to +40 °C with 95 % relative humidity non‑condensing.
A 15 A, 600 VAC, 100 KA I.R. fuse is recommended for a 0.5 HP unit.
