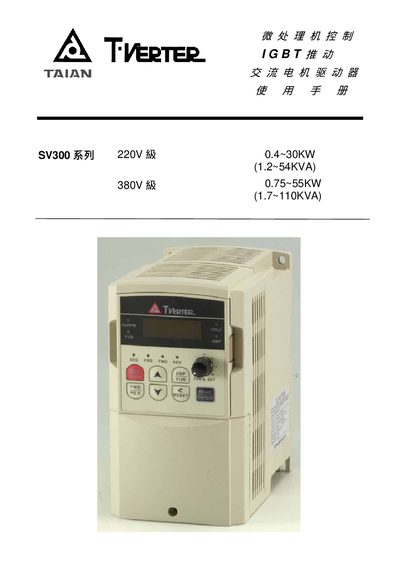

This document is a user manual for the SV300 series 220V level and 380V level 0.4~30KW (1.2~54KVA), 0.75~55KW (1.7~110KVA) IGBT-driven AC motor drives. The manual includes quick start guide, safety precautions, model description, environmental requirements and installation, software index, troubleshooting and maintenance, peripheral components, etc.
The Taian SV300 Variable Frequency Drive manual provides detailed safety instructions, installation steps, wiring diagrams, and operating procedures. It explains how to connect the drive to AC power, configure parameters, and use the built‑in PLC functions.
Additional sections cover fault diagnosis, routine maintenance, and optional foreign components such as AC reactors and EMC filters. The document also includes parameter tables and a quick‑start guide for fast commissioning. This manual is written in Chinese.
