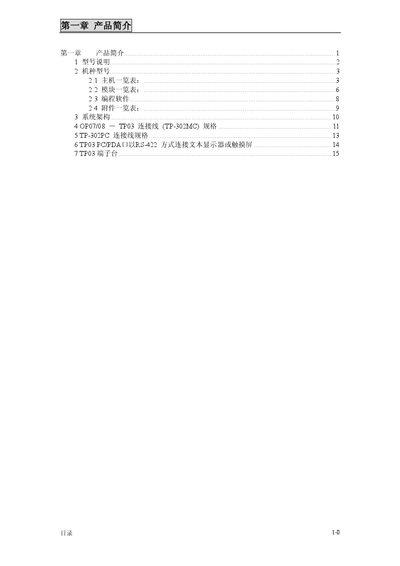

The TAIAN TP03 PLC user manual details features, specifications, wiring, and programming options for the high‑speed programmable controller.
The TAIAN TP03 is a high‑speed, high‑quality programmable logic controller (PLC) designed for industrial automation. The manual provides an overview of the product line, including the host modules, expansion modules, programming software, and accessories. It also describes the system architecture, communication options, and physical dimensions of each model.
Detailed sections cover connection cable specifications, terminal block layouts, module wiring diagrams, and configuration settings for special relays, AD/DA modules, and communication interfaces such as MODBUS, Profibus‑DP, DeviceNet, and Ethernet TCP/IP. The document includes programming language support (Ladder Diagram, Instruction List, SFC) and maintenance instructions. This manual is written in Chinese.
| Basic instruction execution time | 0.31 µs per step (ANDB), 0.45 µs per step (LD) |
|---|---|
| Program memory size | 4~8~16k steps |
| Maximum expandable points | 256 points |
| Digital I/O channels | 60 channels |
| Input power specification | 24 VDC, 7 mA |
| Output power specification | 250 VAC/2 A; DC 30 V/2 A |
The basic instruction execution time is 0.31 µs per step for ANDB and 0.45 µs per step for LD.
The TP03 can be expanded up to 256 points.
It uses a 24 VDC input at 7 mA and provides outputs of 250 VAC/2 A and DC 30 V/2 A.
