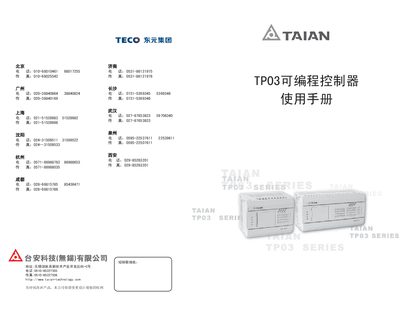

This manual mainly introduces the model, mainframe, module, programming software and accessories of this product, for user reference
This manual covers the TP03 programmable controller, describing its hardware features, basic functions, and specifications. It includes detailed information on installation, wiring, I/O configuration, high‑speed counting, and communication options.
Key sections cover the controller's program memory, instruction execution times, input/output capacities, Modbus communication, troubleshooting procedures, and a full list of supported instructions. This manual is written in Chinese.
| Instruction execution time (AND) | 0.31 µs |
|---|---|
| Instruction execution time (LD) | 0.45 µs |
| Number of input points | 60 |
| Number of output points | 10 |
| High‑speed counter frequency | up to 100 kHz |
| Communication protocol | Modbus |
| Built‑in power supply | DC24V |
The TP03 supports up to 60 input points and 10 output points.
The controller provides Modbus communication.
AND instructions execute in 0.31 µs and LD instructions in 0.45 µs.
