The HP ProLiant DL585 G5 is a four-socket server that delivers the highest levels of performance in an industry-standard architecture. With up to four quad-core AMD Opteron processors and large memory capacities, the DL585 G5 delivers the performance and power efficiency required by compute-intensive database, virtualization, and consolidation applications. Its remote management features help lower costs and improve the ability to respond quickly to business changes.

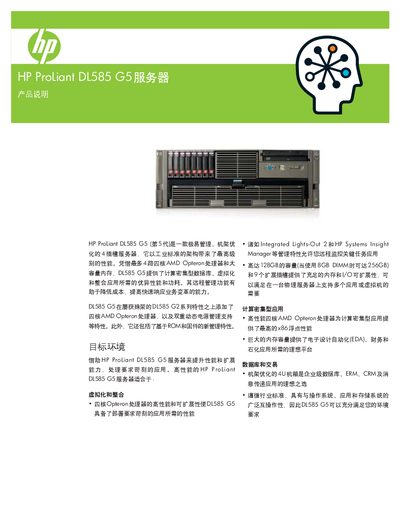

This guide introduces the HP ProLiant DL585 G5 server, a rack‑optimized 4‑U system built for demanding compute‑intensive, virtualization and consolidation workloads.
It highlights the server’s main specifications such as dual‑socket 4‑core AMD Opteron 8300 processors, up to 128 GB (256 GB with 8 GB DIMMs) of DDR2 memory, eight hot‑swap SFF SAS/SATA drives for up to 1.168 TB storage, Integrated Lights‑Out 2 remote management, and optional redundant power supplies. This manual is written in Chinese.
| Processor type | AMD Opteron 8300 series |
|---|---|
| Processor model | 4‑core AMD Opteron Model 8354 (2.2 GHz) |
| L2 cache per core | 512 KB |
| Shared L3 cache | 2 MB |
| Number of processors | 2 or 4 |
| Memory type | PC2‑5300 Registered DDR2 |
| Standard memory | 4 GB, 8 GB or 16 GB |
| Maximum memory | 128 GB (256 GB with 8 GB DIMM) |
| Advanced memory protection | Advanced ECC |
| Storage type | Hot‑swap SFF SAS and SATA |
| Maximum internal storage | 1.168 TB |
| Drive bays | Up to 8 hot‑swap drives |
| Remote management | Integrated Lights‑Out 2 (iLO 2) |
| Rack height | 4U |
| Dimensions | 6.94 x 19 x 26.5 in (176 x 48.3 x 67.3 cm) |
| Power supply | Optional redundant hot‑swap, Low Line (90‑132 VAC) or High Line (180‑264 VAC) |
| Warranty | 1 year parts/labor/on‑site |
It uses 4‑core AMD Opteron 8300 series processors, model 8354 running at 2.2 GHz.
The server supports up to 128 GB of memory, or 256 GB when 8 GB DIMMs are installed.
Integrated Lights‑Out 2 (iLO 2) provides hardware‑based remote management via a web browser.
It supports up to eight hot‑swap SFF SAS or SATA drives for a maximum internal capacity of 1.168 TB.
