The HP LaserJet 5200 series printer is a powerful black and white laser printer that offers fast print speeds (up to 35 pages per minute), high quality output, and easy networking.
The HP LaserJet 5200 series is a wide‑format, high‑speed laser printer designed for business workteams. It delivers up to 35 pages per minute for letter size, fast first‑page out in under 10 seconds, and 1200 dpi resolution for sharp black‑and‑white output.

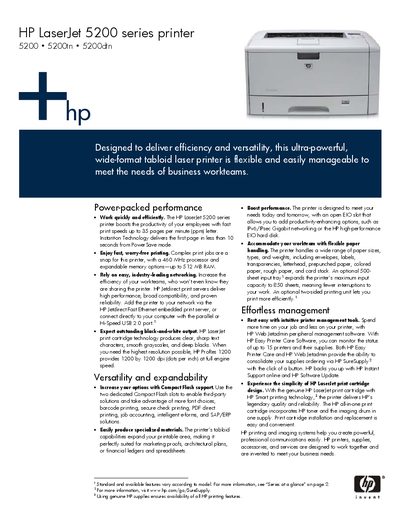

The manual covers hardware features such as expandable memory (up to 512 MB RAM), optional high‑capacity trays, dual‑sided printing, and networking options including an embedded HP Jetdirect Fast Ethernet server. It also details software tools for printer management, accessories, power specifications, and warranty information.
| Print speed | Up to 35 ppm (letter), 18.5 ppm (tabloid) |
|---|---|
| First page out time | Less than 10 seconds (letter and tabloid) |
| Resolution | 1200 dpi (FastRes 1200 and ProRes 1200) |
| Processor | 460 MHz |
| Standard memory | 48 MB RAM (one open DIMM slot) |
| Maximum memory | Up to 512 MB RAM via 100‑pin DDR DIMM |
| Duty cycle | Up to 65,000 pages per month |
| Input capacity | Up to 850 sheets with optional 500‑sheet tray |
| Output capacity | 250‑sheet output bin |
| Dimensions (W×D×H) | 490 mm × 563 mm × 275 mm |
| Weight | 20.2 kg (44.5 lb) |
| Printing power consumption | 550 W (600 W for 5200din) |
| Standby power consumption | 27 W |
The first page is printed in less than 10 seconds for both letter and tabloid sizes.
The printer can be equipped with up to 512 MB of RAM using a single 100‑pin DDR DIMM slot.
It includes an embedded HP Jetdirect Fast Ethernet print server and optional internal or external Gigabit/Ethernet or wireless print servers.
