The RSA6100A Series real-time spectrum analyzers can help you quickly discover design problems that other signal analyzers may miss. The revolutionary DPX® spectrum display uses color to vividly display the behavior of transient signals in the frequency domain, providing direct confidence in the design stability methodology or immediately revealing the problem. Other signal analyzers simply cannot offer this vivid transient display. Once a problem is found using DPX, the RSA6100A Series real-time spectrum analyzer (RTSA) can trigger events, capture a continuous time record of the changing RF events, and perform time-correlated analysis in all domains. You get the unique triggering-capturing-analyzing capability of a wideband vector signal analyzer, spectrum analyzer, and real-time spectrum analyzer, all in one instrument.

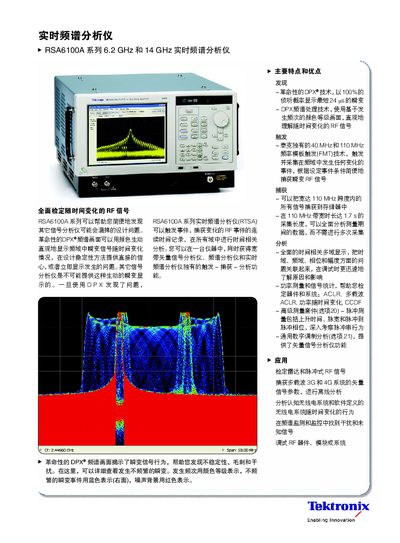

This manual introduces the RSA6100A series, highlighting the revolutionary DPX® spectrum processing, frequency‑template triggering, and multi‑domain analysis that enable rapid detection of transient RF signals. It covers both the 6.2 GHz (RSA6106A) and 14 GHz (RSA6114A) configurations.
The document provides detailed information on trigger settings, capture modes, analysis functions, input/output connectors, performance specifications, and ordering options, helping users configure, operate, and maintain the instrument effectively. This manual is written in Chinese.
| Frequency range | 9 kHz – 6.2 GHz (RSA6106A) or 9 kHz – 14 GHz (RSA6114A) |
|---|---|
| Input connector | Front‑panel N‑type RF connector, 50 Ω |
| Capture memory capacity | 256 MB (standard) – 1 GB optional |
| Resolution bandwidth range | 1 Hz – 5 MHz |
| Maximum safe input level | +30 dBm (continuous RF) |
| Trigger output | 50 Ω BNC, high >2.0 V, low <0.4 V, 1 mA LVTTL |
The RSA6100A series covers 9 kHz to 6.2 GHz for the RSA6106A model and 9 kHz to 14 GHz for the RSA6114A model.
It uses an N‑type RF connector with a 50 Ω impedance.
With option 110 the instrument provides a real‑time capture bandwidth of up to 110 MHz.
The trigger output is a 50 Ω BNC connector, high level >2.0 V, low level <0.4 V, with a maximum output current of 1 mA (LVTTL).
