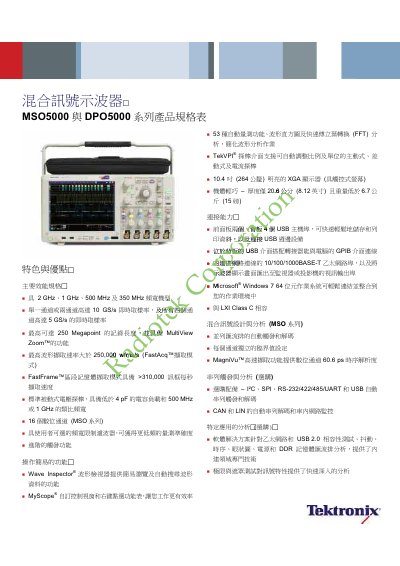

User manual for Tektronix MSO5000 and DPO5000 mixed‑signal oscilloscopes covering specifications, operation, and accessories.
This manual provides detailed information on the Tektronix MSO5000 and DPO5000 series mixed‑signal oscilloscopes, including performance specifications, trigger and acquisition features, and software options. It also describes probe selections, serial bus analysis capabilities, and optional accessories.
The document includes product specification tables, explanations of the Wave Inspector interface, guidance on serial‑bus decoding, and contact information for Tektronix support worldwide. This manual is written in Chinese.
| Bandwidth | Up to 2 GHz (also 1 GHz, 500 MHz, 350 MHz models) |
|---|---|
| Sample Rate | Greater than 10 GS/s per channel (single or dual channel) |
| Record Length | Standard 12.5 M points, up to 250 M points optional |
| Waveform Acquisition Rate | Exceeds 250,000 wfm/s |
| Digital Channels | 16 digital channels (MSO series) |
The oscilloscopes can acquire more than 250,000 waveforms per second.
The MSO5000 series provides 16 digital channels.
The highest‑bandwidth model offers a 2 GHz analog bandwidth.
Standard record length is 12.5 M points; optional extensions can reach up to 250 M points.
