TG700 is a multi-format, analog and digital precision signal generator platform launched by Tektronix. It is designed to meet the development needs of the video industry. TG700 can provide analog, serial digital and digital high-definition formats such as synchronous pulse signals and test signals.

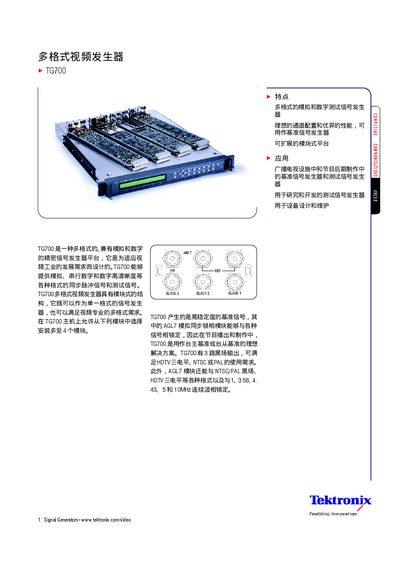

The TG700 is a modular, multi‑format video signal generator designed for broadcast, post‑production and R&D applications. It can operate as a single‑format generator or combine up to four interchangeable modules to provide analog, digital and HDTV test signals. The manual details each module (AGL7, BG7, ATG7, AVG7, AWVG7, AG7, DVG7, HDVG7), technical specifications, signal output standards, environmental limits, and ordering information, including optional accessories and power‑line options. This manual is written in Chinese.
| Internal reference frequency | 13.5 MHz |
|---|---|
| Long‑term frequency stability | < 1 ppm/yr |
| Module slots | 4 |
| Network interface | 10Base‑T Ethernet |
| Maximum power consumption | 100 W |
| Operating temperature range | 0 °C to +50 °C |
| Output impedance (signal) | 75 Ω |
| Amplitude accuracy (black‑burst output) | ± 2 % |
The internal reference frequency is 13.5 MHz.
