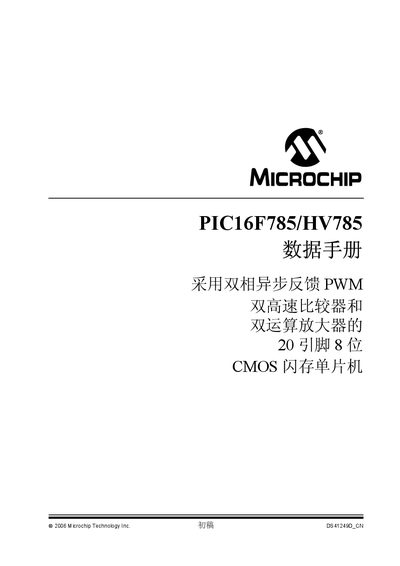

This datasheet describes the PIC16F785/HV785 devices, which are 20-pin 8-bit CMOS Flash microcontrollers that feature dual phase asynchronous feedback PWM, dual high-speed comparators, and dual operational amplifiers.
This datasheet covers the PIC16F785/HV785 8‑bit CMOS flash microcontroller, detailing its architecture, memory organization, clock options, and peripheral modules. It includes pin‑out diagrams for PDIP, SOIC, SSOP and QFN packages and lists electrical specifications and operating limits.
Key features highlighted are the dual analog comparators, dual operational amplifiers, dual‑phase asynchronous‑feedback PWM, 10‑bit ADC with up to 14 channels, programmable code protection, low‑power sleep modes, and a wide operating voltage range of 2.0 V to 5.5 V. This manual is written in Chinese.
| Operating voltage range | 2.0 V‑5.5 V |
|---|
