CME-DN01 is a communications adapter device that can be used to connect VFDs to a DeviceNet network and act as a gateway between the DeviceNet and MODBUS networks.
The Delta CME-DN01 is a DeviceNet communication adapter that connects directly to a VFD and acts as a gateway for DeviceNet and MODBUS networks. It provides eight I/O addresses, requires no external power supply, and draws 15 V from the VFD via the RS‑485 connection.

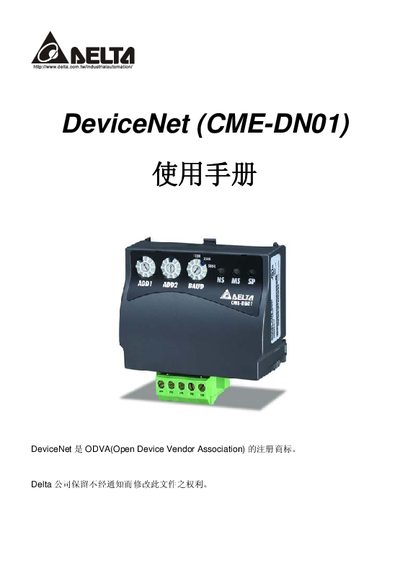

The manual includes a preface, an overview of hardware and specifications, a quick installation guide, configuration settings, error message descriptions, and troubleshooting steps. Appendices provide detailed installation information, DeviceNet object definitions, and instructions for using the Auto EDS Generator software. This manual is written in Chinese.
| I/O Addresses | 8 |
|---|---|
| Power Supply | No external power; 15 V supplied from VFD via RS‑485 |
| Communication Connector | RJ‑45 8‑pin |
The CME-DN01 provides eight I/O addresses.
No, it receives 15 V power from the VFD through the RS‑485 connection.
It uses an 8‑pin RJ‑45 connector.
