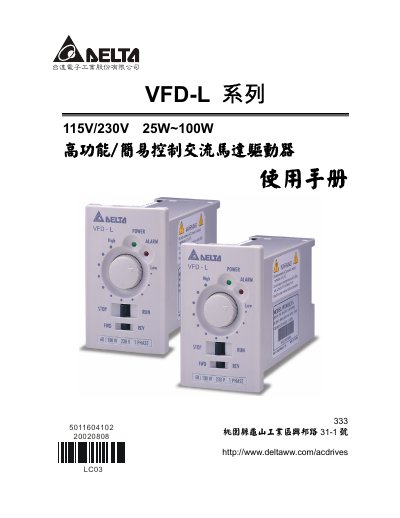

The VFD-L series is a high‑performance, panel‑mounted AC motor driver designed for 25 W to 100 W applications. This manual guides users through safe installation, proper wiring, and configuration of the drive. It also covers parameter programming, RS‑485 communication setup, error codes, and recommended maintenance procedures to ensure reliable long‑term operation. This manual is written in Chinese.
| Input voltage | 115 V / 230 V |
|---|---|
| Rated motor power | 25 W / 40 W or 60 W / 100 W |
| Rated output current | 0.28 A / 0.4 A (25/40 W) or 0.56 A / 0.8 A (60/100 W) |
| Frequency range | 1.00 Hz – 120.00 Hz |
| Operating temperature | -10 °C to +40 °C |
| Storage temperature | -20 °C to +60 °C |
Set DIP switch 7 to ON for communication mode, then use DIP switches 1‑6 to select an address between 1 and 63. The address is stored in memory when power is applied.
Error code 01 corresponds to over‑current (OC).
A 6.0 A Bussmann JJN‑6 fuse is recommended for the 40 W 115 V version.
