CSP410/CSP610/CSP6910 is a car stereo speaker with a white lined design. It provides right/left options and can be installed in the front/rear doors of a car.

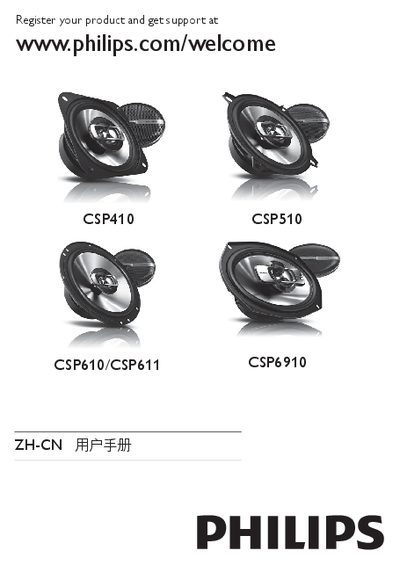

This manual covers Philips car stereo speakers (CSP410, CSP510, CSP610, CSP611, CSP6910). It explains the product’s features, packaging contents, and safety precautions for proper use in vehicles.
The document includes detailed installation instructions, wiring polarity guidance, technical specifications for each model, and a troubleshooting section. It also provides environmental information about hazardous substances and instructions for product registration on the Philips website. This manual is written in Chinese.
| CSP410 Speaker Type | 10 cm dual‑coaxial |
|---|---|
| CSP410 Rated Power | 30 W |
| CSP410 Peak Music Power | 150 W |
| CSP410 Sensitivity | 88 dB |
| CSP410 Frequency Response | 50‑30 kHz |
| CSP410 Impedance | 4 Ω |
| CSP410 Magnet Weight | 4.4 oz |
| CSP410 Installation Depth | 46 mm |
| CSP610 Speaker Type | 16.5 cm dual‑coaxial |
| CSP610 Rated Power | 40 W |
| CSP610 Peak Music Power | 210 W |
| CSP610 Sensitivity | 90 dB |
| CSP610 Frequency Response | 40‑30 kHz |
| CSP610 Impedance | 4 Ω |
| CSP610 Magnet Weight | 7.6 oz |
| CSP610 Installation Depth | 58 mm |
The speakers need at least 46 mm of depth for installation.
Connect the black wire to the speaker’s negative terminal and the black‑with‑white‑stripe wire to the positive terminal, matching left/right and polarity.
You can register the product at www.philips.com/welcome.
