D-Sub multi-pin connector (25 pins), with protection class IP 65, suitable for operating temperatures of -5°C / +50°C

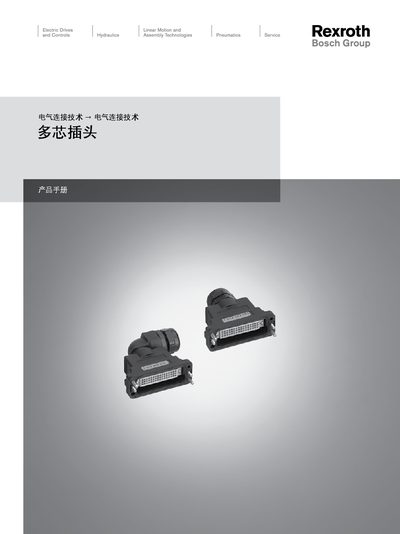

The document is a product leaflet for Bosch Rexroth's D‑Sub multi‑pin connectors, covering both 25‑pin and 44‑pin versions. It lists technical data, environmental limits, material construction, and detailed pin‑assignment with cable‑color coding.
Key specifications include an operating temperature range of –5 °C to +50 °C, IP65 protection, a polyamide shell, a rated voltage of 24 V DC, and a weight of 0.042 kg per connector. Pin‑out tables show the exact position and colour of each conductor according to DIN 47100. This manual is written in Chinese.
| Operating temperature range | -5 °C to +50 °C |
|---|---|
| Protection rating | IP65 |
| Shell material | Polyamide |
The connectors are rated IP65.
They can be used from –5 °C up to +50 °C.
