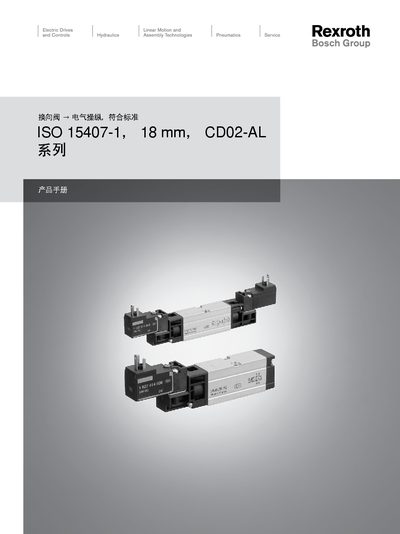

Rexroth ISO 15407-1 18 mm CD02-AL series Commutation valve User Guide

The product manual mainly introduces the characteristics and features of Bosch Rexroth AG's CD02-AL series pneumatic directional valves.

Brand: Rexroth
Document type: User Manual
Language: English
Pages: 36
File format: PDF
File size: 2.1 MB
Published: 26 October, 2011
Updated: 30 September, 2023
MD5 checksum: 98C5E14A483E6EEBA124C8755AE2BA2C
PDF: Rexroth ISO 15407-1 18 mm CD02-AL series Commutation valve User Guide PDF

About this manual

The guide describes the CD02-AL series commutation valve (ISO 15407‑1, 18 mm) for pneumatic applications. It includes technical data, electrical ratings, operating conditions, and safety notes.

Contact information for Bosch Rexroth, part numbers, and reference tables for voltage and pressure settings are also provided.

What's inside

Technical Data
Electrical Ratings
Operating Conditions
Installation
Safety Information
Contact Information

Specifications

Pressure range	2.2 bar – 10 bar
Operating temperature	40 °C – 450 °C
IP protection class	IP65
Maximum particle size	5 µm

Frequently asked questions

What is the pressure range of the CD02-AL valve?

The valve operates from 2.2 bar up to 10 bar.

What temperature range can the CD02-AL valve handle?

It can be used between 40 °C and 450 °C.

What is the IP protection rating of the valve?

The valve has an IP65 protection class.
