This manual introduces the features and characteristics of Bosch Rexroth stop valves, including working pressure range, environmental temperature, medium, material, interface, weight, product code and other information.

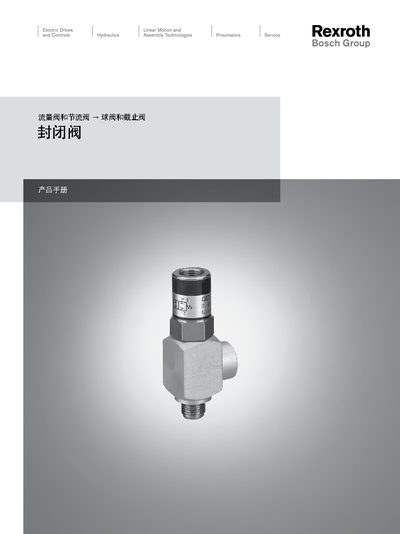

The manual describes Bosch Rexroth's cutoff valves model 0821003075 (G 1/8) and 0821003076 (G 1/4), intended for pneumatic systems using compressed air. It outlines structural features, material construction, and connection options.
Technical data include a pressure range of 0.5‑10 bar, operating temperature range of –20 °C to +80 °C, flow rates of 340 l/min and 680 l/min, weights of 0.059 kg and 0.103 kg, and details on a brass‑nickel shell and acrylic‑rubber seal. This manual is written in Chinese.
| Working pressure range | 0.5 bar – 10 bar |
|---|---|
| Operating temperature range | -20 °C – +80 °C |
| Medium | Compressed air |
| Shell material | Brass, nickel plated |
| Seal material | Acrylic rubber |
| Rated flow (model 0821003075) | 340 l/min |
| Rated flow (model 0821003076) | 680 l/min |
| Weight (model 0821003075) | 0.059 kg |
| Weight (model 0821003076) | 0.103 kg |
The valves operate from 0.5 bar up to 10 bar.
Model 0821003075 (G 1/8) is rated at 340 l/min, while model 0821003076 (G 1/4) is rated at 680 l/min.
The shell is made of brass with a nickel plating, and the seal is made of acrylic rubber.
They can be used between –20 °C and +80 °C.
