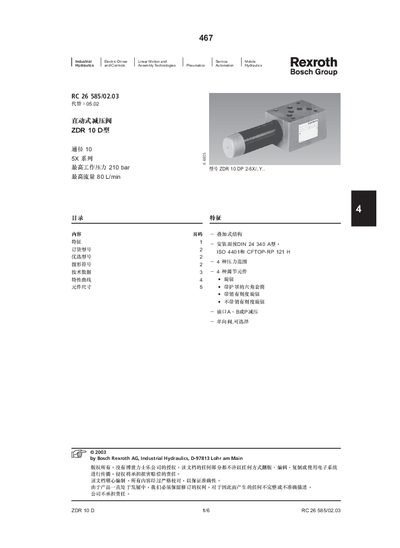

The document describes the features and characteristics of Bosch Rexroth's ZDR 10 DP 2-5X/..Y.. model direct operated pressure reducing valve.
The ZDR 10 D straight‑move hydraulic valve is designed for high‑pressure applications up to 210 bar with a maximum flow of 80 L/min. It operates within a temperature range of –30 °C to +80 °C and has a nominal port diameter of 10 mm. The valve weight is approximately 2.8 kg.
The manual includes detailed dimensions, connection interfaces, characteristic performance curves, and installation instructions. It also lists part numbers for different pressure and flow variants and provides guidance on sealing and mounting requirements. This manual is written in Chinese.
| Maximum working pressure | 210 bar |
|---|---|
| Maximum flow rate | 80 L/min |
| Weight | 2.8 kg |
| Operating temperature range | -30 °C to +80 °C |
| Maximum outlet pressure | 210 bar |
The valve can operate up to 210 bar of pressure.
The maximum flow rate is 80 L/min.
It is rated for temperatures from –30 °C to +80 °C.
The valve weighs about 2.8 kg.
