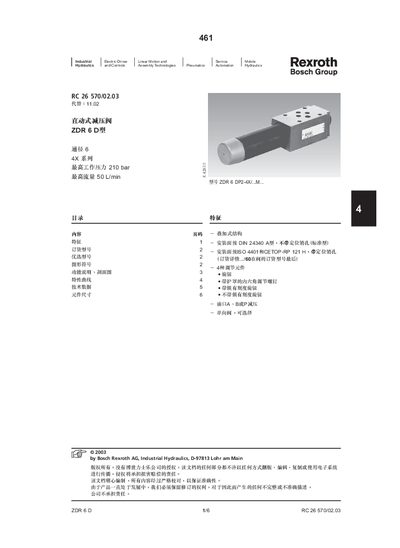

ZDR 6 D type direct-operated pressure reducing valve product manual, mainly introduces the product features and characteristics, including installation methods, adjusting elements, pressure reduction methods, etc.
The ZDR 6 D is a straight‑move hydraulic valve designed for precise pressure control in industrial hydraulic systems. It offers a maximum working pressure of 210 bar and a flow capacity of up to 50 L/min.
The document includes technical data, installation guidelines, operating instructions, maintenance procedures, and dimensional drawings. It also lists pressure settings, temperature limits, and component dimensions to assist engineers and service technicians. This manual is written in Chinese.
| Maximum working pressure | 210 bar |
|---|---|
| Maximum flow rate | 50 L/min |
| Operating temperature range | -20 °C to +80 °C |
| Weight | 1.2 kg |
| Maximum inlet pressure | 315 bar |
| Maximum outlet pressure | 25 bar |
The valve is rated for a maximum working pressure of 210 bar.
It can handle a flow rate of up to 50 L/min.
The valve operates between –20 °C and +80 °C.
The valve weighs approximately 1.2 kg.
