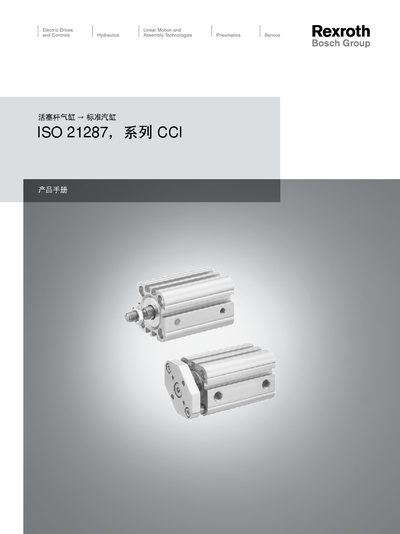

This manual describes the features and specifications of ISO 21287 series CCI compact cylinders.
This guide describes the ISO 21287 series CCI pneumatic piston‑rod cylinders, covering their basic construction, mounting options, and applicable standards. It includes tables of bore sizes, stroke lengths, thread dimensions, and pressure and temperature limits.
Technical data such as maximum pressure, temperature range, and dimensional variants are listed, followed by contact details for Bosch Rexroth Pneumatics and legal disclaimer information.
| Bore size range | 16 mm – 100 mm |
|---|---|
| Thread size | M5‑G 1/8 |
| Operating temperature range | -20 °C to 480 °C |
The cylinder is offered with bore sizes from 16 mm up to 100 mm.
It is rated for temperatures from –20 °C to 480 °C.
