NWD-495 FlexiDomeDN IP is a high-performance network camera that captures clear and realistic images with precise digital signal processing and wide dynamic range technology. The camera features day/night mode and intelligent detection capabilities, supports MPEG-4 video encoding technology, and has Power over Ethernet (PoE) functionality.

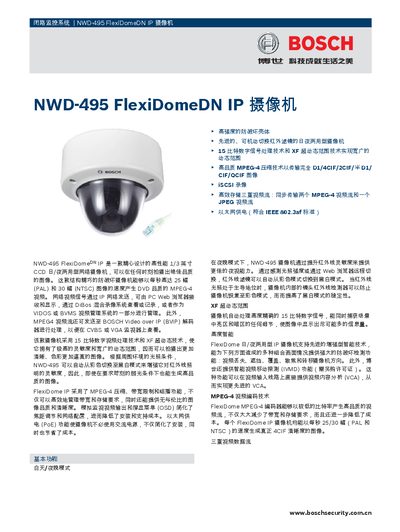

This manual describes the features and technical data of the Bosch NWD-495 FlexiDomeDN IP camera. It covers basic functions such as day/night mode, high‑resolution MPEG‑4 video, and built‑in video analytics, as well as power options including PoE, 24 VAC and 12 VDC.
Installation, network configuration, and compliance information are also included, with details on video streams (MPEG‑4 and JPEG), resolution options, and environmental ratings. The document ends with a list of accessories and hardware part numbers. This manual is written in Chinese.
| Maximum power consumption | 10.5 VA |
|---|---|
| Image sensor | 173 mm CCD |
| Supported video formats | MPEG‑4 and JPEG streams |
| Network interface | 10/100 Base‑T, RJ45, half/full duplex |
| Ingress protection rating | IP54, NEMA 3R |
The camera generates independent MPEG‑4 and JPEG streams simultaneously.
Yes, in night mode the camera switches to black‑white imaging to improve sensitivity under low light.
