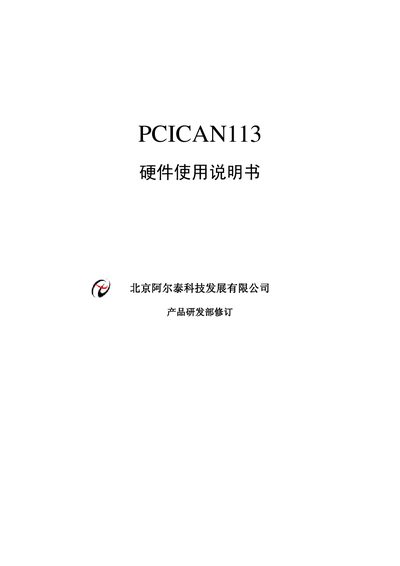

This document is the hardware user manual for PCICAN113. It introduces the product's functional overview, hardware description, software support, application considerations, calibration, and warranty.
The PCICAN113 is a high‑performance PCI‑CAN interface board that supports CAN 2.0A/B standards and baud rates up to 1 Mbps. It provides a DB9 connector, isolated 120 Ω termination, and on‑board 32 KB RAM for data buffering.
The manual includes a functional overview, component layout and pin‑out diagrams, supported operating systems (Windows 98/Me, 2000, XP, Linux, VxWorks), and detailed usage notes such as handling precautions, calibration, and warranty procedures. This manual is written in Chinese.
| CAN standard compliance | CAN 2.0A/B |
|---|---|
| Supported baud rates | Up to 1 Mbps (any baud rate) |
| Maximum data throughput | ≈1000 frames/s at 1 Mbps |
| On‑board RAM | 32 KB |
| Isolation voltage | 1000 V DC |
| Termination resistance | 120 Ω |
| Supported operating systems | Win98/Me, Win2000, WinXP, Linux, VxWorks |
| Connector type | DB9 CAN interface (CANopen, DeviceNet compatible) |
It supports Windows 98/Me, Windows 2000, Windows XP, Linux, and VxWorks.
The board can operate at any baud rate up to 1 Mbps.
It includes 32 KB of RAM for data storage.
It uses a DB9 connector that complies with CANopen and DeviceNet specifications.
