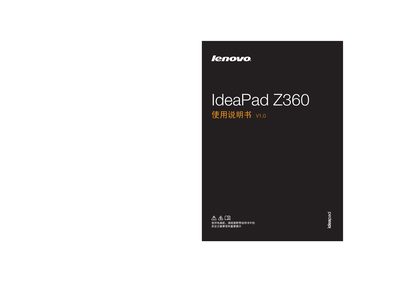

This is a Lenovo laptop user manual, which introduces the various parts of the computer and their functions, as well as how to use the computer's basic operations
This manual introduces the Lenovo IdeaPad Z360 notebook, covering its physical layout, safety precautions, and how to start using the device. It explains basic operations such as power management, keyboard use, touch‑pad handling, and one‑key system rescue.
The document also lists the laptop’s technical specifications, environmental compliance statements, and details on available interfaces like HDMI, USB, and eSATA. It includes guidance for Windows operating systems and links to Lenovo’s support website. This manual is written in Chinese.
| Dimensions | 327 mm × 219 mm |
|---|---|
| Thickness | 20 mm – 34 mm |
| Weight | ≈2.0 kg |
| Processor Platform | Intel Arrandale |
| Memory | DDR3, 2 × SODIMM slots |
| Display | 13.3‑inch LED HD LCD |
| Storage | 2.5‑inch, 9.5 mm SATA HDD |
| Battery | 48 Wh 6‑cell Li‑ion (optional 57 Wh) |
| Power Adapter | 20 V, 65 W |
| USB Ports | 2 × USB 2.0 (plus optional eSATA/USB or up to 3 USB 2.0) |
| Network | 10/100/1000 Mb Ethernet |
It has two USB 2.0 ports and an optional eSATA/USB combo port, or up to three USB 2.0 ports depending on the configuration.
The notebook is equipped with a 48 Wh 6‑cell lithium‑ion battery (a 57 Wh version is also listed).
The guide assumes the user is running Windows 7, though it notes differences for other Windows versions.
