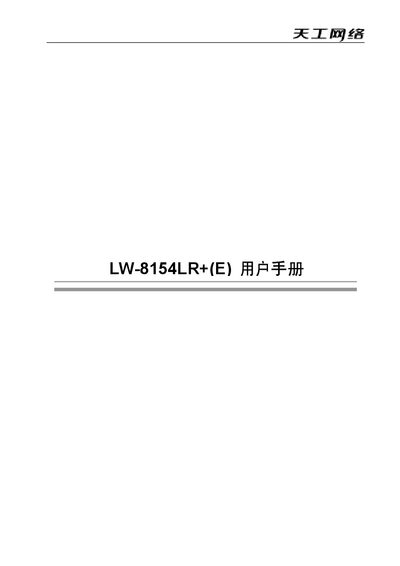

This manual explains the features, installation, initialization and web management of the LW-8154LR+ (E) outdoor wireless bridge.
The document introduces the LW-8154LR+ (E) outdoor wireless bridge, its hardware components, typical applications such as point‑to‑point, point‑to‑multipoint, repeater and coverage scenarios, and the system requirements needed before installation. It also describes the mechanical characteristics, required accessories, and safety warnings.
Installation steps cover site selection, mounting, Ethernet cabling with waterproof connectors, and power supply using a 48 V/750 mA module. Configuration is performed via a web interface accessed at the default IP address 192.168.0.228, where basic, security and advanced settings can be adjusted. The appendix provides the full technical specifications and terminology used throughout the manual. This manual is written in Chinese.
| Frequency band | 5.8 GHz |
|---|---|
| Wireless standard | IEEE 802.11a |
| Maximum data rate | 54 Mbps |
| Power input | 100‑240 VAC, 50/60 Hz, 800 mA / 48 VDC, 750 mA |
| RF output power | 18 dBm |
| Receiver sensitivity | -65 dBm @ 54 Mbps |
| Operating temperature | -10 °C to 55 °C |
| Storage temperature | -20 °C to 80 °C |
| Antenna interface | N‑type connector |
Enter http://192.168.0.228 in a web browser and log in with the default username "admin" and password "password".
It can be powered by a 48 V, 750 mA power module or via PoE with an input range of 100‑240 VAC, 50/60 Hz, 800 mA.
