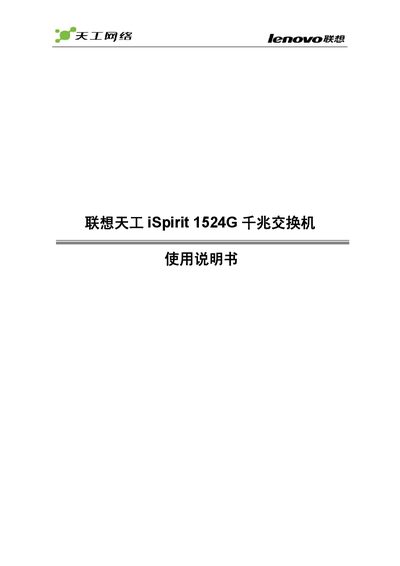

This manual introduces the features and characteristics of Lenovo Tiangong iSpirit 1524G Gigabit Switch, including product features, packing list, product feature parameters, panel components and function descriptions, switch installation guide and other contents.
This manual introduces the iSpirit 1524G full‑gigabit Ethernet switch, which offers 24 auto‑negotiating RJ45 ports, support for IEEE 802.3/802.3u/802.3ab standards, and a non‑blocking forwarding architecture. It also lists the accessories included in the box and outlines safety and warranty information.
The document details the front‑panel components such as RJ45 ports, LED indicators (Link/Act, 1000M, PWR) and the rear AC power connector, and provides step‑by‑step installation guidance for both desktop and rack‑mount setups, including power requirements and environmental recommendations. This manual is written in Chinese.
| Number of RJ45 ports | 24 10/100/1000Mbps ports |
|---|---|
| MAC address table size | 8K entries |
| Supported standards | IEEE 802.3, 802.3u, 802.3ab |
| Power input voltage | 110‑260 VAC, 50/60 Hz |
| Operating temperature | 0 °C – 50 °C |
It has 24 auto‑negotiating 10/100/1000 Mbps RJ45 ports.
The switch operates on a single‑phase AC input of 110 V to 260 V at 50 Hz or 60 Hz.
Use the L‑shaped brackets and six supplied screws to attach the switch to the rack mounting holes; desktop installation does not require the brackets.
