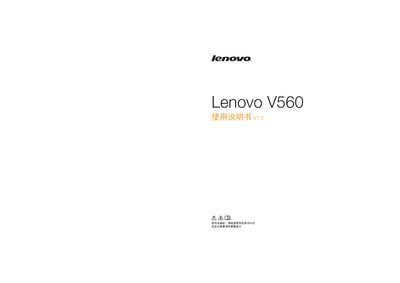

This is the Lenovo V560 laptop user manual, which introduces the computer's functions, features, operating methods and usage precautions
This manual introduces the Lenovo V560 notebook, showing the external views, key components, and safety precautions. It guides users through initial setup, power usage, touchpad, keyboard, and peripheral connections.
Later chapters cover internet wiring, the one‑key system rescue feature, common troubleshooting steps, and a detailed specifications appendix. Support information and environmental compliance details are also included. This manual is written in Chinese.
| Dimensions | ≈378 mm × 252 mm × 20‑30 mm |
|---|---|
| Weight | ≈2.5 kg (including 6‑cell battery) |
| CPU | Intel Calpella processor |
| Memory | DDR3 SO‑DIMM |
| Display | 15.6" HD LCD |
| Storage | 2.5" HDD |
| Keyboard | 6‑row Lenovo keyboard |
| Camera | 1.3 MP built‑in camera |
| Battery | 6‑cell 48 Wh battery |
| Power Adapter | 20 V 65 W AC adapter |
| I/O Ports | HDMI (model‑specific), USB 2.0 ×3, eSATA/USB ×1, RJ‑45, audio jack, VGA, memory‑card slot |
The manual assumes you are using Windows 7; instructions may differ slightly for other operating systems.
Press the one‑key rescue button while the computer is powered off to launch the rescue system.
Visit Lenovo’s website, select Service & Support, and enter the machine’s serial number to view drivers and configuration details.
