ART8001 data acquisition card is a PCI bus based data acquisition card, which can be directly inserted into any PCI slot in IBM-PC/AT or compatible computer to form data acquisition, waveform analysis and processing systems in various fields such as laboratories and product quality testing centers.
The ART8001 is a data acquisition card designed for high‑speed, high‑precision signal capture. It connects to a PC via PCI or USB and provides two analog input channels with selectable voltage ranges.

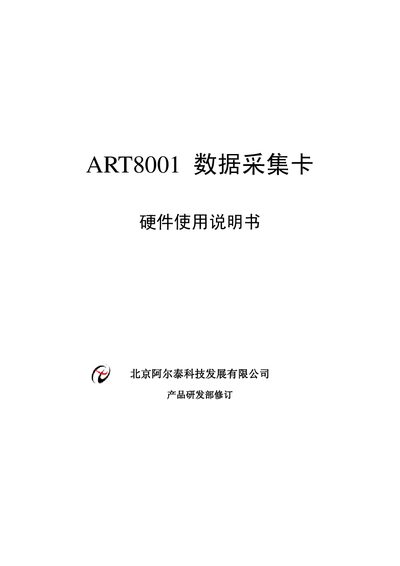

The manual describes the hardware layout, component functions, signal wiring, data format, safety precautions, warranty information and a quick‑start installation procedure. This manual is written in Chinese.
| Input voltage range | 10 V, 5 V, 2 V, 1 V, 0.5 V, 0.2 V |
|---|---|
| Resolution | 8 bit |
| Maximum sampling rate | 40 kHz |
| Number of analog channels | 2 |
| Input impedance | 1 MΩ |
| Memory depth | 128 K points (RAW) |
| Operating temperature | -40 °C to +85 °C |
| Board dimensions | 173.33 mm × 109.8 mm × 18.5 mm |
The ART8001 supports input ranges of 10 V, 5 V, 2 V, 1 V, 0.5 V and 0.2 V.
The card provides two analog input channels.
The maximum sampling rate is 40 kHz.
Run the provided Setnp.exe installer, follow the on‑screen prompts to select the board type (PCI or USB), and the software will automatically detect and configure the hardware.
