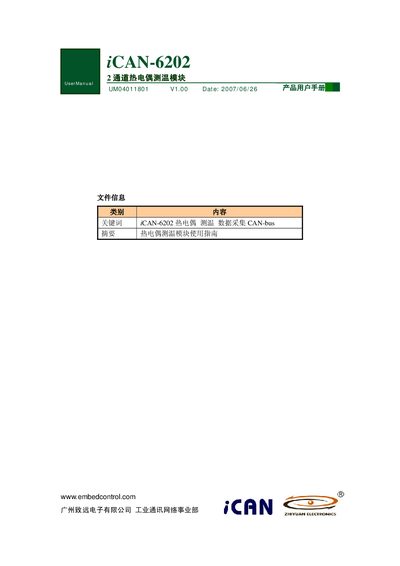

iCAN-6202 2-channel thermocouple temperature measurement module product user manual, mainly introduces the product's technical indicators, interface description, power supply, CAN baud rate and MAC ID setting, signal indicator light, CAN bus connection, module power supply and communication line connection, principle diagram, thermocouple input, digital output, module communication protocol format, iCAN-6202 application examples and other content.
The iCAN-6202 is a 2‑channel thermocouple measuring module with optional digital outputs, designed for industrial temperature acquisition and CAN‑bus integration. It operates from a single DC supply of +10 V to +30 V and supports a wide range of thermocouple types.
The manual covers functional overview, technical specifications, interface description, power supply requirements, CAN baud‑rate and MAC‑ID configuration (both via dip switches and network), LED status indicators, CAN‑bus wiring, communication message formats, thermocouple input wiring, digital output configuration, application examples, safety precautions, and contact information for sales and service. This manual is written in Chinese.
| Power supply voltage | +10 V ~ +30 V DC |
|---|---|
| Thermocouple input channels | 2 |
| Digital output channels | 2 (independent configuration) |
| Digital output type | Open‑drain, max load voltage +30 V, max load current 30 mA |
| Supported thermocouple types and ranges | J –210 °C~1200 °C, K –200 °C~1370 °C, E –100 °C~1000 °C, T –200 °C~400 °C, N –200 °C~1300 °C, B 650 °C~1800 °C, R 0 °C~1750 °C, S 0 °C~1760 °C |
| Temperature resolution | 0.1 °C |
| Cold‑junction compensation accuracy | ±1 °C |
| Conversion rate | 4 conversions per second (2 channels per second) |
| Timing cycle interval | 10 ms – 2.55 s |
| Temperature over‑limit alarm | Supported |
