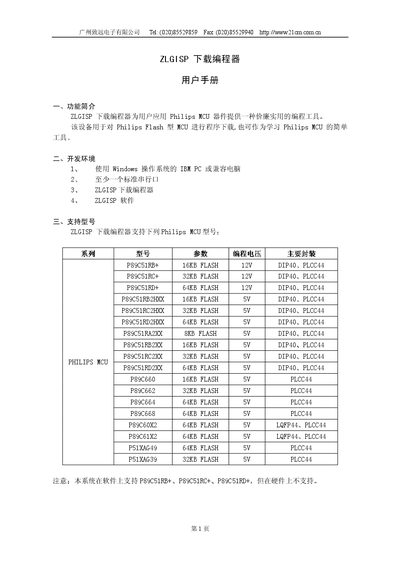

ZLG ZLGISP Programming Tool User Manual

About this manual

The ZLGISP programming tool provides a low‑cost solution for downloading firmware to Philips Flash MCUs and can also be used for learning purposes. It connects to a Windows PC via a standard serial port and includes dedicated software for managing the programming process.

The manual describes the development environment, supported MCU models, hardware connections, software interface, accessory list, and technical support information. It also contains an appendix with a test program for verifying the programmer and target MCU. This manual is written in Chinese.

What's inside

• Function Overview
• Development Environment
• Supported MCU Models
• Hardware Description
• Software Interface
• Accessories List
• Technical Support
• Appendix

Specifications

Frequently asked questions

What computer system is required to use the ZLGISP programmer?

A Windows PC (IBM compatible) with at least one standard serial port is required.

What accessories are included with the ZLGISP programmer?

The package contains the ZLGISP programmer, a serial download cable, a dedicated 9 V/500 mA power supply, the ZLGISP software, and this user manual.
