XGate-DPS embedded module is a PROFIBUS-DP protocol isolated PROFIBUS communication module with a maximum communication speed of 12Mbps, supporting a maximum of 244Byte input and 244Byte output, and can realize PROFIBUS-DP user parameter function to improve bus efficiency.
The XGate‑DPS series provides a fully isolated PROFIBUS‑DP slave interface, supporting up to 12 Mbps communication speed and enhanced ESD protection. It can be accessed via UART/SPI serial ports or a parallel bus, allowing high‑speed real‑time data transfer.

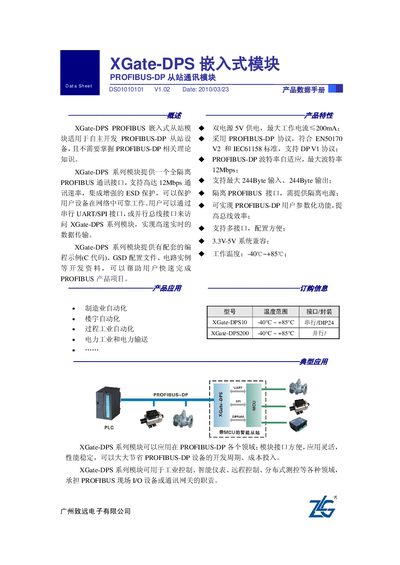

The module operates on a 3.3 V‑5 V system, supplies dual 5 V power (max 200 mA), and supports up to 244 Byte of input and output data. It complies with EN50170 V2 and IEC 61158 standards and includes development resources such as C code examples, GSD files, and circuit diagrams. This manual is written in Chinese.
| Communication speed | 12 Mbps |
|---|---|
| Operating voltage | 3.3 V‑5 V |
| Maximum input data | 244 Byte |
| Operating temperature | -40 °C ~ +85 °C |
The module supports a communication speed of up to 12 Mbps.
It operates on a 3.3 V to 5 V system.
The module can handle up to 244 Byte of input data and 244 Byte of output data.
The module works from –40 °C to +85 °C.
