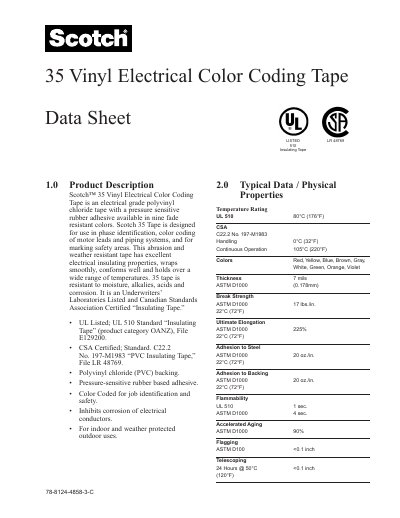

A datasheet for the 3M Scotch 35 vinyl electrical color coding tape, detailing its electrical properties, physical specifications, and installation techniques.
The 3M Scotch 35 Vinyl Electrical Color Coding Tape is an electrical grade polyvinylchloride tape with a pressure sensitive rubber adhesive. It is available in nine fade-resistant colors and is designed for phase identification, color coding of motor leads and piping systems, and marking safety areas. The tape features excellent electrical insulating properties and is resistant to moisture, alkalies, acids, and corrosion.
| Backing Material | Polyvinyl chloride (PVC) |
|---|---|
| Adhesive Type | Pressure-sensitive rubber based |
| Thickness | 7 mils (0.178mm) |
| Break Strength | 17 lbs./in. |
| Ultimate Elongation | 225% |
| Adhesion to Steel | 20 oz./in. |
| Voltage Rating | 600 Volts |
| Dielectric Strength | 1250 v/mil |
| Insulation Resistance | >1 x 106 megohms |
| Temperature Rating (UL 510) | 80°C (176°F) |
| Temperature Rating (CSA) | 0°C (32°F) Handling, 105°C (220°F) Continuous Operation |
| Shelf Life | 5 years |
| Standard Roll Sizes | 3/4 in. x 66 ft., 1/2 in. x 20 ft. |
The tape is based on polyvinyl chloride (PVC) and/or its copolymers with a rubber-based, pressure-sensitive adhesive.
The tape shall be applied in half-lapped layers with sufficient tension to conform and produce a uniform covering.
The tape has a 5-year shelf life from the date of manufacture when stored under specified conditions.
