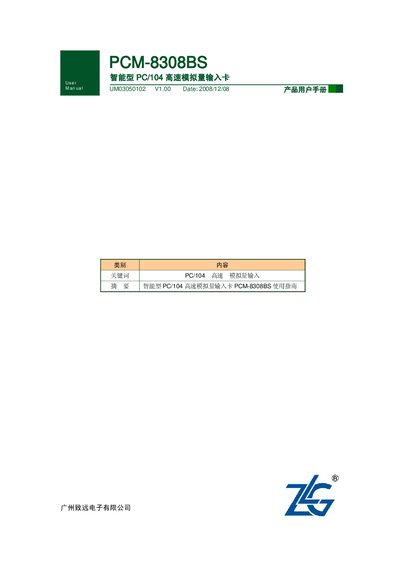

PCM-8308BS Intelligent PC/104 High-speed Analog Input Card User Guide
The ZLG PCM‑8308BS is a PC/104 bus analog input card offering high‑speed, high‑resolution data acquisition. It supports up to 200 kHz sampling, 16‑bit resolution and configurable input ranges for industrial sensor signals.
The manual provides an overview of the card’s hardware, electrical and static parameters, pin definitions, wiring diagrams, register settings, calibration procedures and safety disclaimer, enabling users to install and operate the device correctly. This manual is written in Chinese.
| Channels | 16 single‑ended / 8 differential |
|---|---|
| Resolution | 16 bit |
| Maximum Sample Rate | 200 kHz |
| FIFO Depth | 2 K samples |
| Input Range | ±10 V, ±5 V, 0‑10 V, 0‑5 V |
| Input Impedance | 20 MΩ |
| Input Protection | 30 V max |
| Common‑Mode Voltage | ±12 V max |
| Zero‑Drift | ±25 µV/°C |
| Gain Drift | 20 ppm/°C |
| ENOB | 13 bit |
The card can sample at up to 200 kHz.
It offers 16 single‑ended channels or 8 differential channels, configurable per channel.
The input range is set by the G1 and G0 bits in the input‑range configuration register.
All input ports have over‑voltage protection up to 30 V.
